JL Rear axle CRD60 ratio 4.88 with ARB air locker TeraFlex Full-Float Lift 0-6"

€ 13.300,00 (inclusief btw 21%)
Levertijd Op Aanvraag
Productcode leverancier 3206488
Bruto gewicht 60,00 Kg

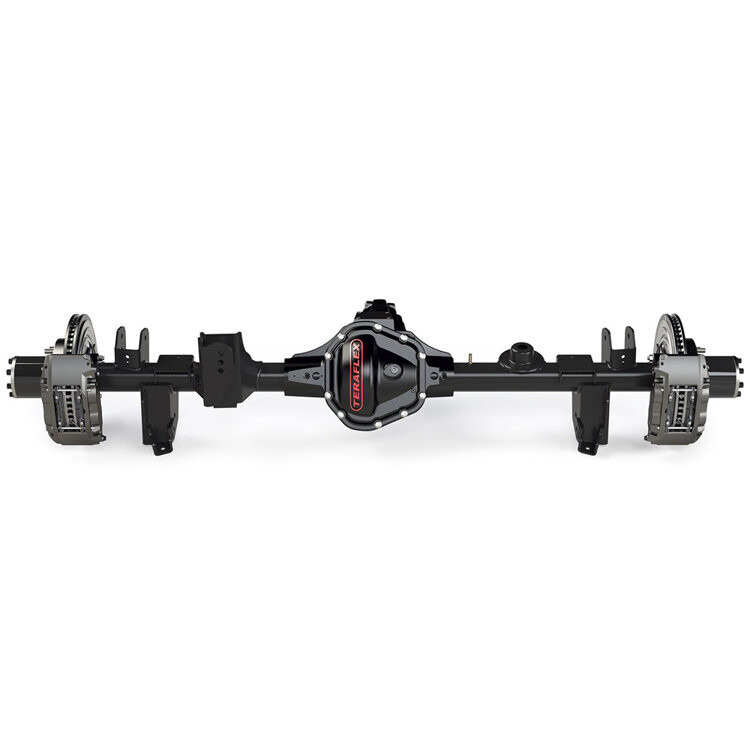

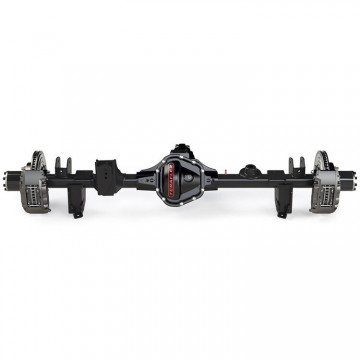

JL Rear axle CRD60 ratio 4.88 with ARB air locker TeraFlex Full-Float Lift 0-6"

Wrangler JL 2 Door 18-present;Wrangler JL 4 Door 18-present

Fabrikant: TERAFLEX
Model: Wrangler JL
  • Extreme duty full-float design
  • 3.25" O.D. x 0.375" wall DOM axle tube for superior strength vs. weight
  • 70" WMS-WMS and 8x6.5" wheel bolt pattern
  • Fixed spindle mount hub assembly
  • Tera CRD60 specific high-pinion rear axle housing design
  • Includes 1350 series pinion yoke
  • 35-spline inner and outer axle shafts
  • HD bearing caps increase rigidity and reduce ring & pinion distortion
  • Constant Radius Design (CRD) provides maximum ground clearance regardless of pinion angle
  • Built-in skimmer" cuts ring gear oil halo and forces it into the pinion bearings
  • Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
  • Oversized outer pinion bearing handles increased torque and high-load conditions
  • High-capacity housing holds maximum amount of oil
  • Pre-installed inner axle seals
  • Ductile cast iron housing w/ increased rib gussets
  • HD ductile iron differential cover w/ increased cover mounting area
  • Integrated lower control arm skid plates
  • High-flow oil passages
  • Reinforced rear track bar mount w/ multiple mounting locations
  • UV protected triple-stage powder coat for corrosion resistance
  • 1/4"-thick CNC laser cut axle brackets for extreme strength
  • Pre-installed upper control arm bushings
  • Proper pinion angle and raised track bar bracket for lifted JL applications
  • Pre-tapped hole on spring perch for bump stop extensions
  • Pre-drilled holes for limit straps and lower spring retainers
  • Retains all JT ESP, ABS, and speedometer sensor capability
  • 100% engineered, designed, and built in the USA w/ new components

Niet op voorraad, beschikbaar voor vooruitbestelling
