Saber Ezy-Glide Recovery Ring

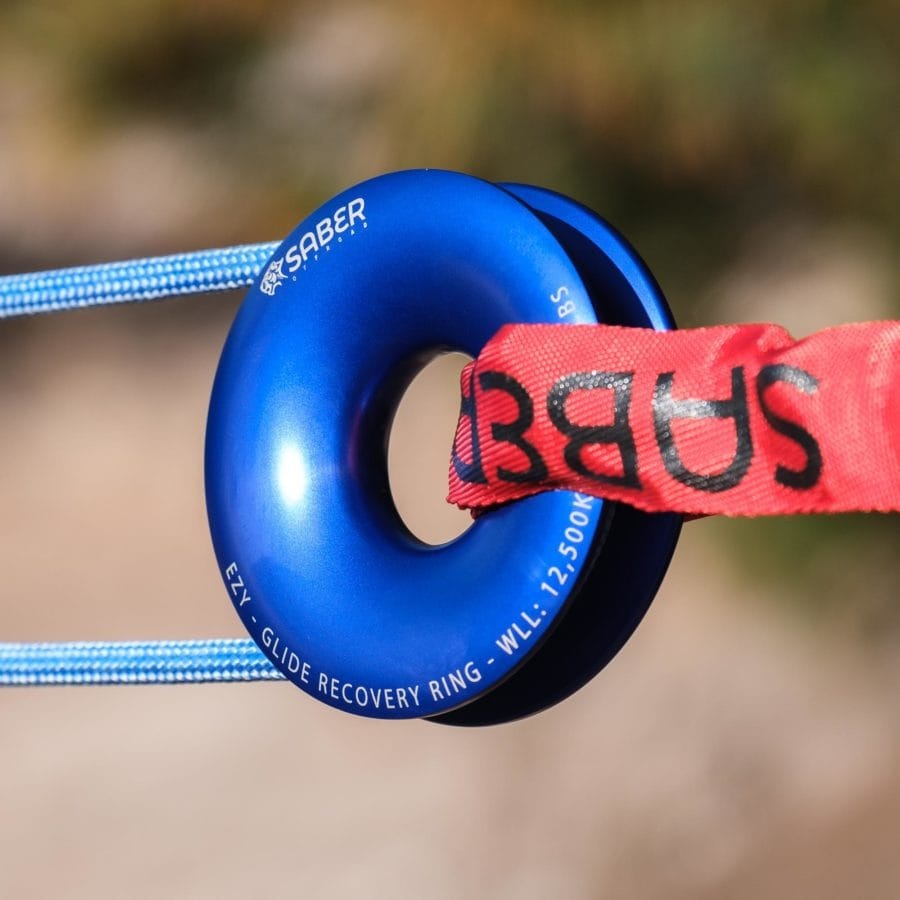

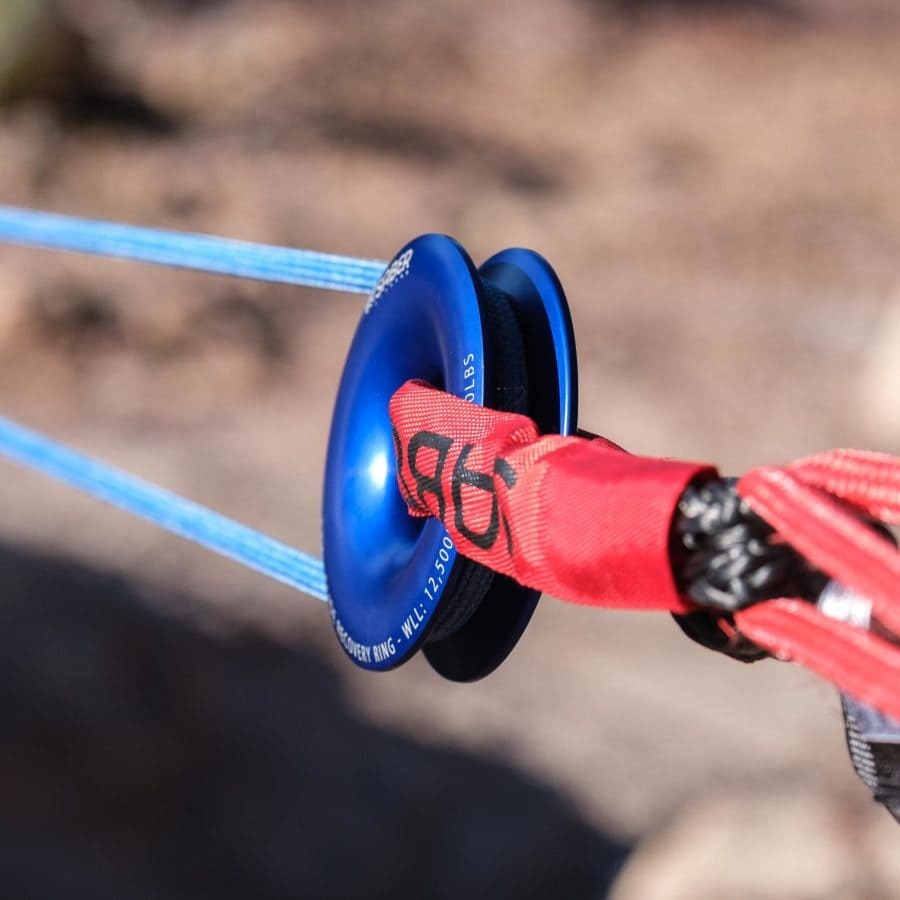

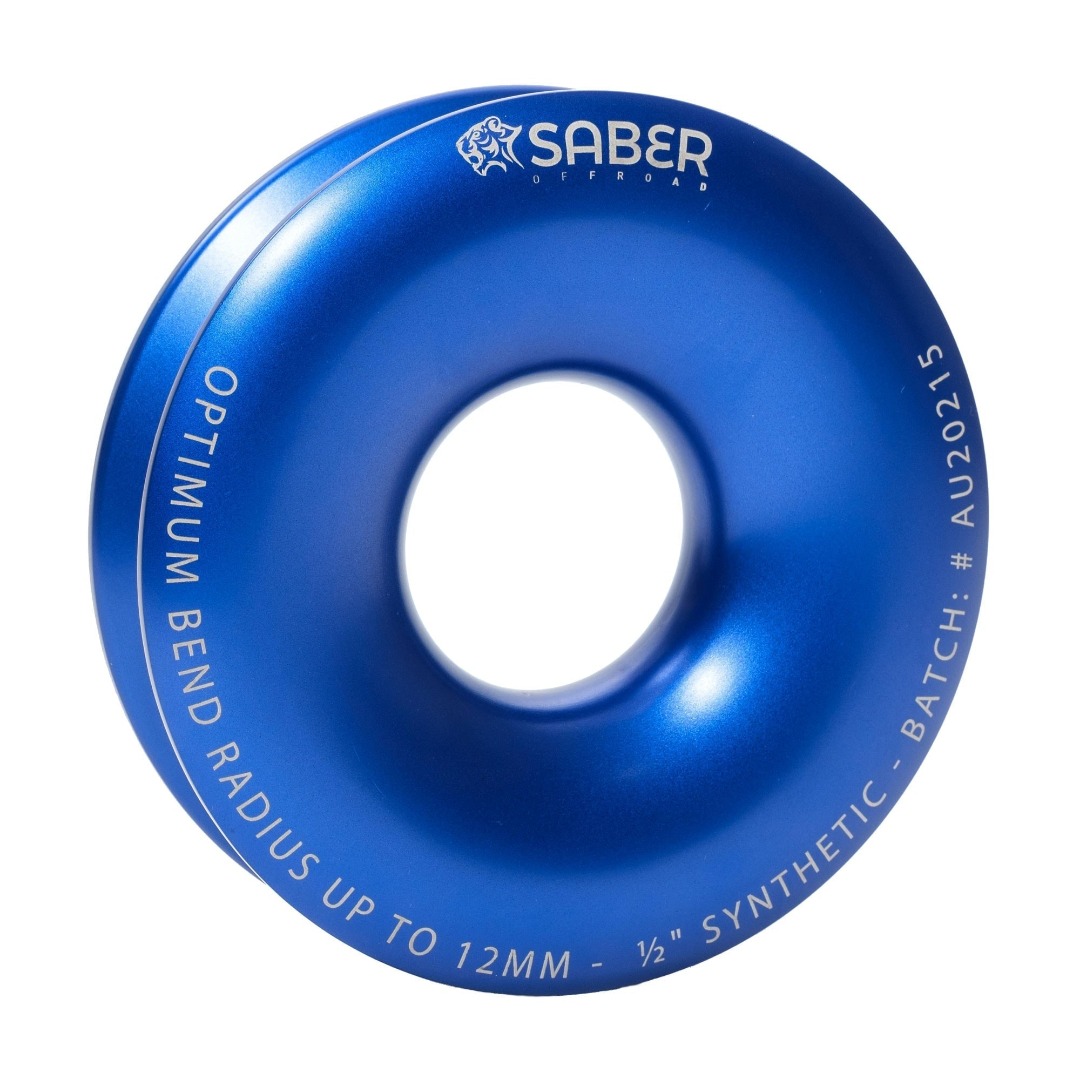

The Saber Offroad Ezy-Glide Recovery Ring is a compact, lightweight alternative to traditional snatch blocks designed for use with synthetic winch ropes and soft shackles. It offers heavy-duty strength with a focus on minimising rope wear and fatigue during recovery operations.

Key Features Saber Ezy-Glide Recovery Ring

• Lightweight design weighing less than 1kg (2.2lbs)
• Total diameter of 143mm with 96mm internal diameter suitable for ropes up to 12mm
• Engineered internal channel to protect synthetic winch rope fibres and reduce fatigue
• Free form central core supports soft shackles and reduces friction
• Constructed from T6 billet aluminium for heavy-duty strength
• Working Load Limit (W.L.L) of 12,500kg
• Australian designed and tested, including mechanical testing in NATA accredited facilities
• Includes a high-grade custom padded bag with clip for attachment to recovery kits

Product Overview Saber Ezy-Glide Recovery Ring

This recovery ring is designed to support heavy recovery use while optimising the lifespan and performance of synthetic winch ropes. Its size and weight offer a significant advantage over traditional snatch blocks, providing similar load capacity at a quarter of the weight and smaller diameter. The internal channel diameter is based on advice from fibre manufacturers to reduce rope damage by ensuring the bend radius is sufficient to prevent fibre fatigue and breakage.

The free form central core allows better interaction with soft shackles, decreasing friction and wear in recovery scenarios. This makes it ideal for users seeking a lightweight, efficient recovery solution that performs reliably in both everyday and demanding off-road situations.

Technology & Materials

The ring is crafted from T6 billet aluminium, providing excellent strength and resistance to wear under heavy loads. The specially designed internal channel minimises flattening of the winch rope fibres. The free form central core reduces friction with connected soft shackles, enhancing the durability and efficiency of the recovery system.

Installation & Compatibility

The Ezy-Glide Recovery Ring is intended for use only with synthetic winch ropes and soft shackles. It is a bolt-in, ready-to-use component designed to integrate seamlessly into existing recovery kits. Combining the ring with Saber Offroad Bound Soft Shackles or Sheath Soft Shackles is recommended for optimal performance and minimal frictional load during use.

Its lightweight, compact design makes it suitable for users prioritising size and weight savings without compromising on working load capacity and rope protection.

Technical Specification

• Total diameter: 143mm
• Internal diameter (channel): 96mm
• Suitable for synthetic winch ropes up to 12mm diameter
• Working Load Limit (W.L.L): 12,500kg
• Weight: less than 1kg (2.2lbs)

Why Choose This Kit

• Lightweight and compact alternative to traditional snatch blocks
• Designed in consultation with winch rope fibre manufacturers for rope protection
• Australian designed and tested with high standards of mechanical validation
• Compatible with industry-leading soft shackles for reduced frictional load
