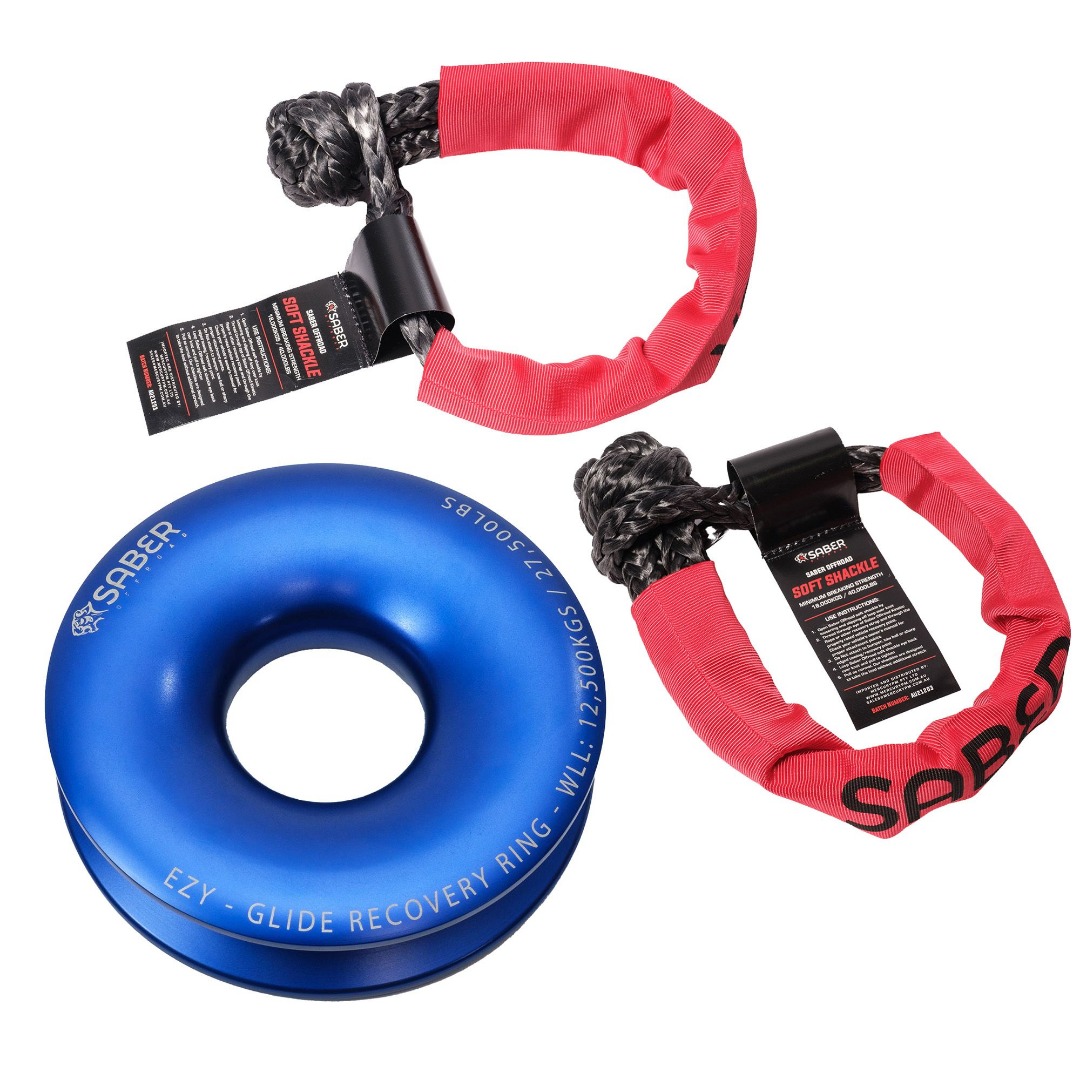

Saber Ezy-Glide Recovery Ring + Twin 18K Sheath Soft Shackles Kit

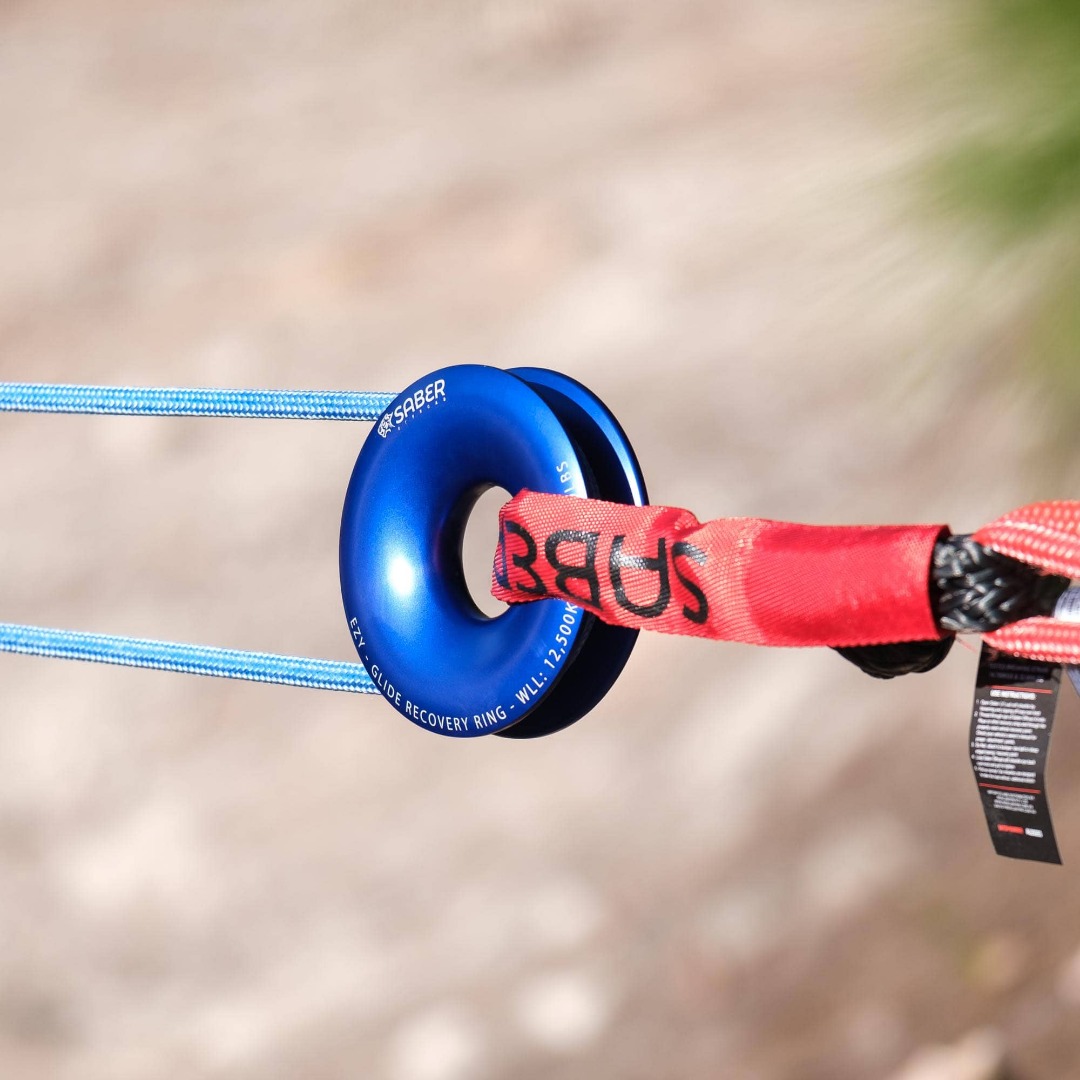

The Ezy-Glide Recovery Ring is a heavy-duty, compact and lightweight recovery ring designed for synthetic winch ropes. It offers excellent load capacity while reducing rope wear and fatigue, making it suitable for users prioritising size, weight and rope protection.

Key Features Saber Ezy-Glide Recovery Ring + Twin 18K Sheath Soft Shackles Kit

• Heavy-duty design with a Working Load Limit of 12,500KG
• Total diameter of 143mm with an internal diameter of 96mm
• Lightweight at less than 1kg (2.2lbs), approximately one quarter the weight of comparable snatch blocks
• Manufactured from T6 billet aluminium for strength and durability
• Free form central core to better support soft shackles and reduce friction
• Designed in consultation with winch rope fibre manufacturers to minimise rope fatigue
• Includes a high-grade custom padded bag with clip for easy attachment to recovery kits
• Australian designed and mechanically tested in NATA accredited facilities

Product Overview Saber Ezy-Glide Recovery Ring + Twin 18K Sheath Soft Shackles Kit

The Ezy-Glide Recovery Ring offers a unique solution to recovery needs where weight and size are critical factors. It is designed to be used exclusively with synthetic winch ropes and soft shackles, which minimises frictional load and extends rope life by preventing tight bends that reduce strength. This ring is ideal for synthetic ropes up to 12mm diameter, providing a recommended internal channel diameter that complies with manufacturer guidance to reduce wear and fibre fatigue.

Its compact and lightweight design is almost 25% of the weight of similar rated snatch blocks, making it easier to carry and use in off-road recovery kits. The free form central core further reduces friction when paired with soft shackles, enhancing system efficiency and reliability during recovery operations.

Technology & Materials

The ring is crafted from T6 billet aluminium, ensuring a balance of strength and lightweight durability. The internal channel is engineered to provide an 8:1 ratio relative to rope diameter, supporting synthetic winch ropes and reducing fibre flattening and damage in use. The free form central core design offers improved support for soft shackles, reducing frictional losses within the recovery system.

Installation & Compatibility

The Ezy-Glide Recovery Ring must be used only with synthetic winch ropes and soft shackles such as the Bound Soft Shackle or Sheath Soft Shackle, which are tested for optimal performance and friction reduction. This ring is a bolt-in accessory designed for ease of integration into recovery kits. It is suitable for users seeking a balance between portability and heavy-duty capability.

It is not intended for use with wire ropes or conventional shackles and should be paired accordingly to ensure maximum rope life and system function.

Technical Specification

• Total diameter: 143mm
• Internal diameter: 96mm
• Weight: less than 1kg (2.2lbs)
• Working Load Limit (W.L.L): 12,500KG
• Material: T6 billet aluminium
• Recommended internal channel diameter per rope sizes:
  • 6mm rope: 48mm minimum internal diameter
  • 8mm rope: 64mm minimum internal diameter
  • 10mm rope: 80mm minimum internal diameter
  • 12mm rope: 96mm minimum internal diameter

Why Choose This Kit

• Engineered with input from winch rope fibre manufacturers to maximise rope life
• Extensively tested both mechanically in accredited facilities and in real-world conditions
• Lightweight design reduces carry weight without sacrificing strength
• Includes a custom padded bag with clip for convenient storage and transport
