ARB compressor with mounting kit for Ford Ranger and Ranger Raptor

ARB compressor with mounting kit for Ford Ranger and Ranger Raptor

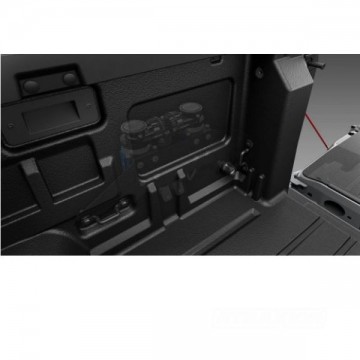

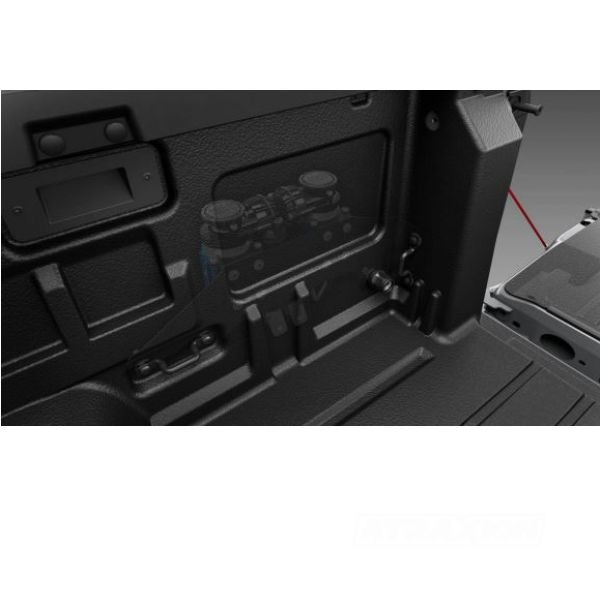

Prepare for any off-road adventure with ARB's air compressor kit, designed to mount on the right rear wheel arch of your Ford Ranger. This allows quick and easy access to the air valve when you need it. The powerful compressor can be used to power diff air locks from ARB, inflate tyres and operate basic pneumatic tools requiring up to 85 l/min. The electronic overheat protection, which automatically shuts down the compressor, will give you peace of mind while you work. It's made from lightweight but durable materials and properly sealed against dust and moisture. With a cleverly placed air valve, you can easily inflate tyres or power up air tools. Built with comfort and reliability in mind, this kit is ideal for expedition and off-road enthusiasts.

Specs:

• Unique mount for secure installation
• Clever mounting location doesn't require too much cargo space
• Easily accessible valve for easy use of the compressor
• Operating range: 9.3 - 10.3 bar
• 12V power supply
• Current consumption:
  • No load 28A
  • Under load 51A
  • Maximum consumption 56A
• Performance:
  • No load: 174.3 l/min
  • Under load (at 200 kPa) 131.7 l/min
• Overload protection
• Compressor motor overheating protection

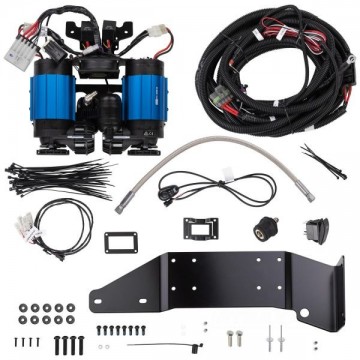

In the box:

• Mount
• Twin piston compressor
• Quick connectors
• Flexible hose
• Harness
• Mounting kit

Notes:

• If the compressor is to be used to control a differential air lock, the ARB171503 Compressor Lock Connection Kit (sold separately) is required
• Allows uninterrupted air supply to tools requiring up to 85 l/min. For tools requiring more than 85 l/min, the use of a compressed air tank is recommended
• Compressor is not designed for industrial applications
• Installation time depends on whether the vehicle is equipped with a drawer system. It is recommended to install the compressor before installing the drawer system
• During installation, the existing recesses in the side panels can be used as a template for drilling holes in the load compartment on vehicles with painted bed, Raptor coating for example
