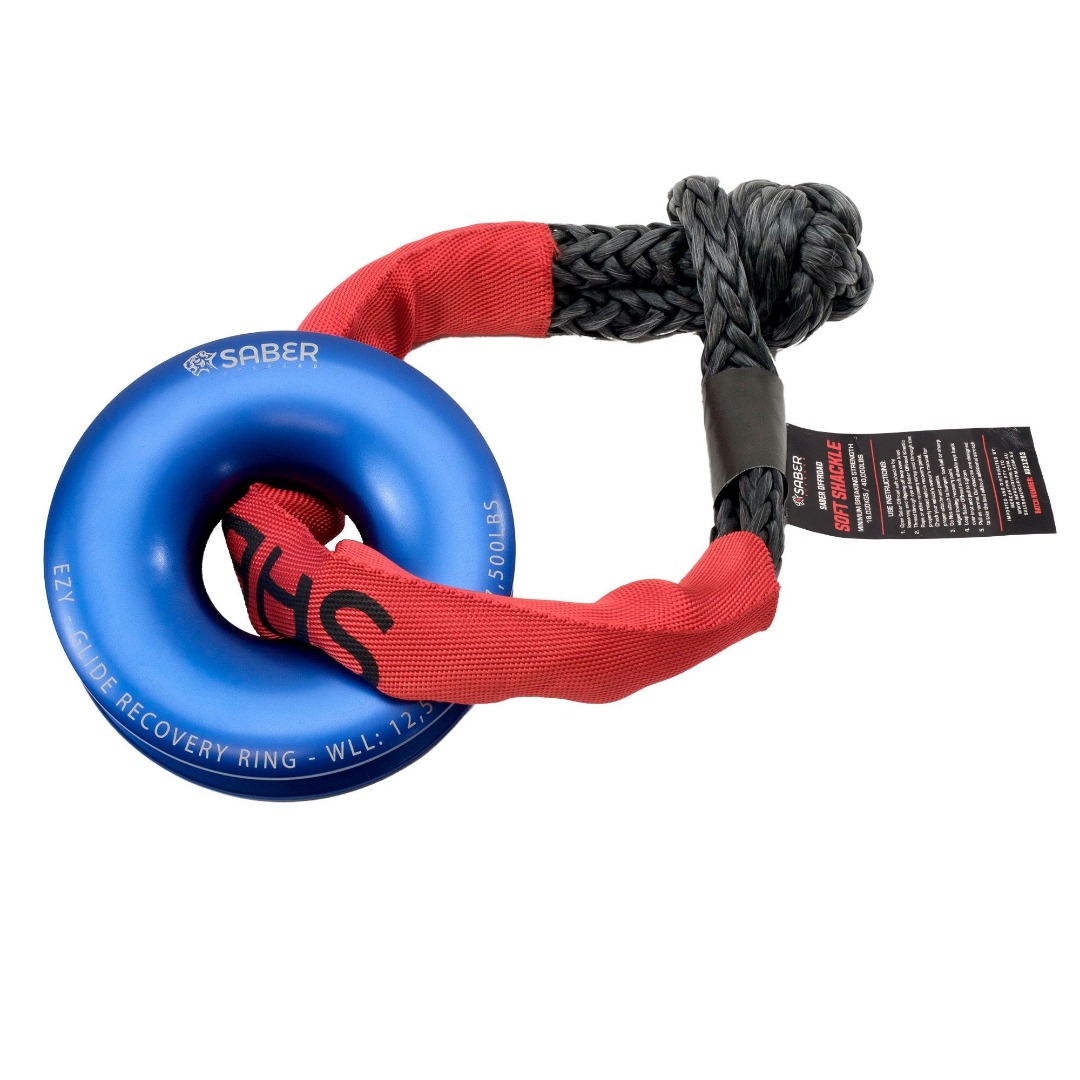

Saber Ezy-Glide Recovery Ring + 18K Sheath Soft Shackle Kit

The Saber Offroad Ezy-Glide Recovery Ring is a compact, heavy-duty recovery accessory designed for use with soft shackles and synthetic winch ropes. It offers a lightweight and durable solution to reduce rope wear while maintaining strong load capacity.

Key Features Saber Ezy-Glide Recovery Ring + 18K Sheath Soft Shackle Kit

• Weighs less than 1kg with a total diameter of 143mm and internal diameter of 96mm
• Engineered internal channel with an 8:1 ratio to minimise rope fatigue and damage
• Free form central core design supports soft shackles and reduces friction
• Constructed from T6 Billet Aluminium for heavy-duty use with a 12,500KG working load limit
• Suitable for synthetic winch ropes up to 12mm diameter
• Includes a high-grade custom padded bag with clip for convenient attachment
• Australian designed and tested, including mechanical certification in NATA accredited facilities

Product Overview Saber Ezy-Glide Recovery Ring + 18K Sheath Soft Shackle Kit

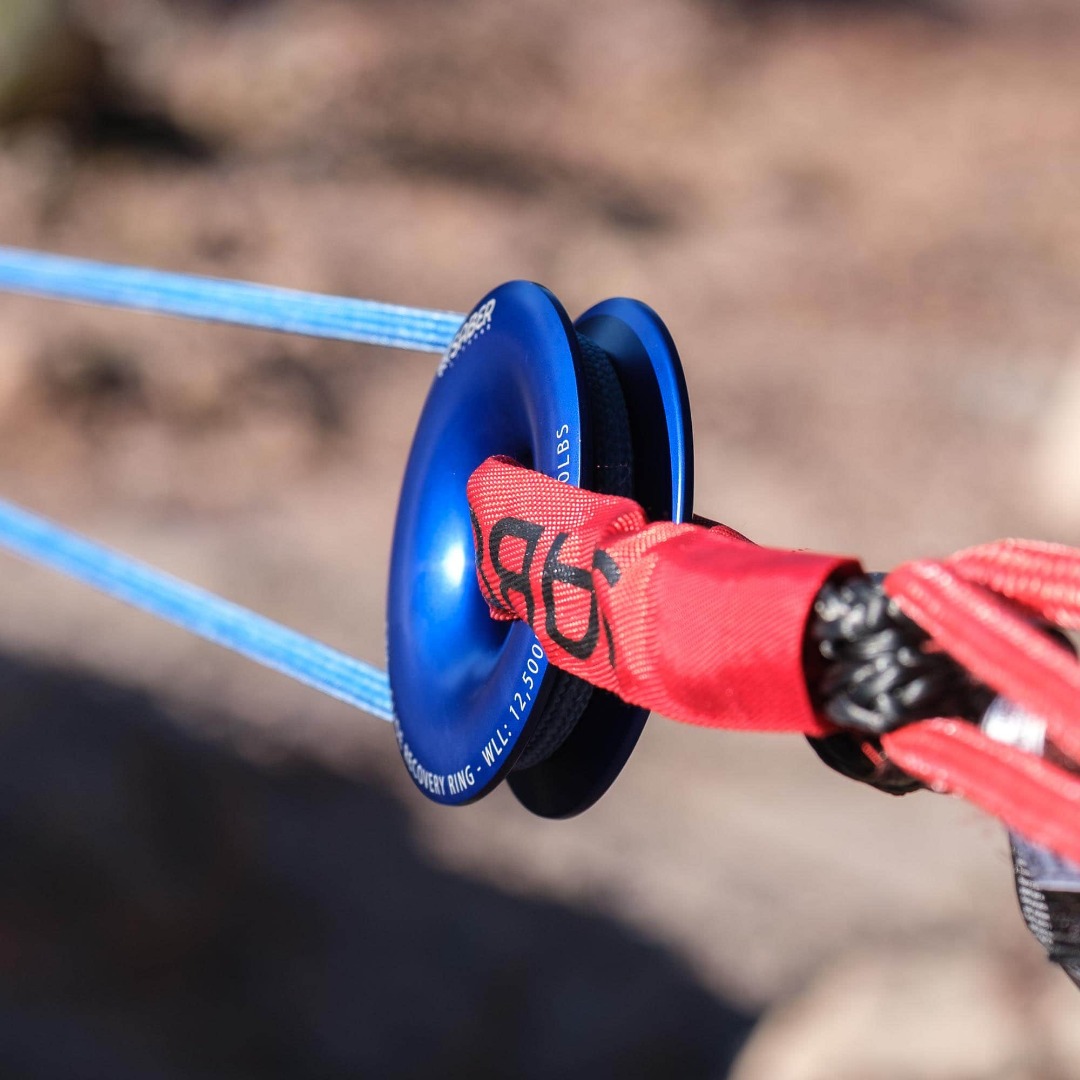

This recovery ring serves as a lightweight, space-saving alternative to bulky snatch blocks, specifically optimised for synthetic winch ropes commonly used with modern recovery kits. Its design reduces stress and wear on ropes by conforming to recommended internal channel diameters, thereby enhancing rope life. The free form central core supports soft shackles effectively, contributing to a smoother, lower friction recovery system. Its robust construction allows it to handle substantial loads safely in demanding recovery scenarios.

Ideal for off-road recovery, the ring is suited for users prioritising minimal weight without compromising strength. It pairs best with soft shackles such as the Bound Soft Shackle or Sheath Soft Shackle, which have been tested to reduce frictional loads further.

Technology & Materials

The recovery ring is crafted from T6 Billet Aluminium, providing a strong yet lightweight structure that withstands high loads. Its precision-engineered internal channel meets an 8:1 diameter ratio to the rope size, helping minimise bending fatigue and fibre damage in synthetic winch ropes. The free form central core design reduces contact friction with soft shackles for enhanced system efficiency.

Installation & Compatibility

This ring is a ready-to-use component that complements synthetic winch ropes and soft shackles. It must be used exclusively with soft shackles and synthetic ropes to ensure proper function and longevity. Its compact, lightweight design allows easy integration within recovery kits without modification.

It is recommended for use with ropes up to 12mm diameter as specified. Combining with compatible soft shackles improves performance and reduces frictional wear.

Technical Specification

• Total diameter: 143mm
• Internal diameter: 96mm
• Recommended for winch ropes up to 12mm diameter
• Working load limit: 12,500KG
• Weight: less than 1kg
• Material: T6 Billet Aluminium
• Includes: High-grade padded bag with clip
• Internal channel minimum suggested diameters for rope sizes:
  • 6mm rope: 48mm ring internal diameter
  • 8mm rope: 64mm
  • 10mm rope: 80mm
  • 12mm rope: 96mm

Why Choose This Kit

• Purpose-built to reduce synthetic rope wear through optimised internal channel design
• Lightweight and compact alternative to snatch blocks without compromising strength
• Manufactured from durable T6 Billet Aluminium for heavy-duty recovery applications
• Tested in accredited Australian facilities and real-world conditions for reliability
