Lazer Lights – Land Rover Defender (2020+) Linear-18 Bumper Kit

€ 639,95 (inclusief btw 21%)
Levertijd 4 tot 8 werkdagen
Specificaties
Productcode leverancier VIFK-DEF2020-02K
Bruto gewicht 1,10 Kg
Omschrijving

Lazer Lights – Land Rover Defender (2020+) Linear-18 Bumper Kit



Lazer Lights – Land Rover Defender (2020+) Linear-18 Bumper Kit

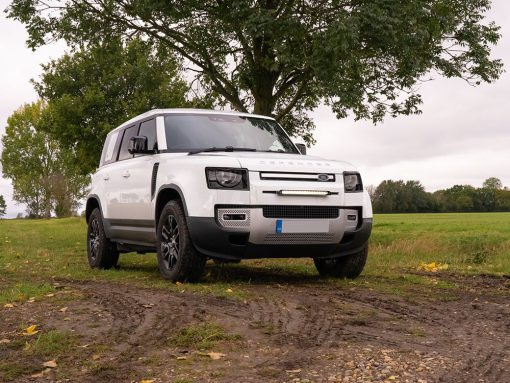

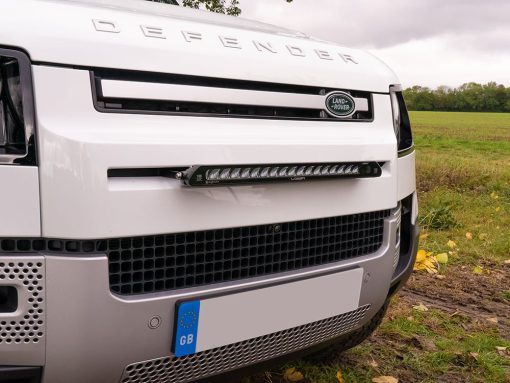

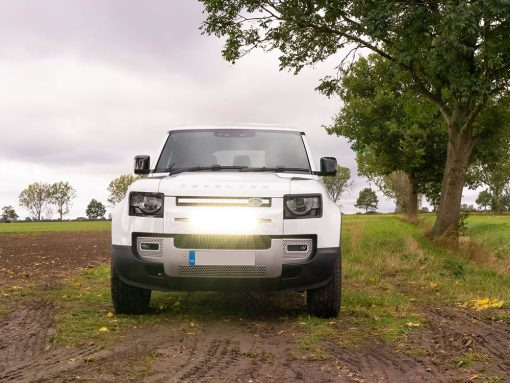

Utilising satin black mounting brackets concealed behind the centre opening, the Lazer Lamps vehicle integration kit for the Land Rover Defender (2020+) allows for mounting a one of our class-leading Linear-18 (Standard, Elite, Elite with i-LBA) high performance LED spotlight, for an auxiliary LED driving light installation that impresses day and night. The slimline design and high-end styling of the Linear products ensures an aesthetic install onto the front of the vehicle that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday road and off-road use.

ECE compliance allows for connecting into the vehicle’s electrical system so that the light(s) activate with the vehicle’s standard high beam lights. Available with all necessary installation parts including wiring loom, and fixtures, the Defender lighting upgrade kit delivers incredible levels of illumination for when the sun goes down.

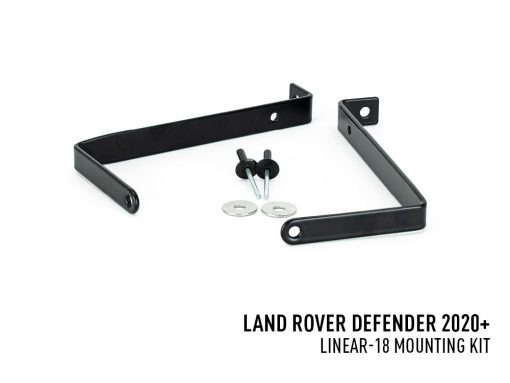

The mounting of the light(s) utilises mounting brackets made from folded aluminium, that are finished with a satin black powder coat. The mounts are secured to the vehicles bumper beam bar for a subtle installation, secured using supplied fasteners. The resulting setup is secure and robust, with anti-theft fasteners included when utilising the Linear Elite lights, or as an optional extra on the equivalent Standard products. Like all lighting products from Lazer Lamps, the lights are designed, engineered, and manufactured in the UK, backed up by our comprehensive 5 year warranty. With no compromises in component parts or production techniques, your installation will stay looking in great shape year-after-year.

Where the vehicle has the LED Matrix headlight system as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.

Bespoke vehicle integration kit for Lazer LED Spotlight installation

Custom fit for Land Rover Defender (MY 2020+)

Optimised for 1x Linear-18 High Performance LED Spotlights

Made from 3mm A2 stainless steel

UV-stable, satin black powder coat

Fully road-legal

5-year warranty

Made in Britain

Specifications:

Technical Specifications
  1x Linear-18 Elite (Double E-Mark) 1x Linear-18 Elite with i-LBA
(E-Boost Mode)
1x Linear-18
Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours
Weight 1090 gr 1090 gr 1090 gr
HIGH BEAM FUNCTION
Total Luminous Flux 13,500 Lm 18,000 Lm 6,750 Lm
Total Driver ‘FOV’ Flux † 9,612 Lm 12,816 Lm 4,806 Lm
Colour Temperature 5000K 5000K 5000K
Number of High Output LEDs 36 48 18
Power Consumption 130 Watts 135 Watts 63 Watts
Current Draw (at 14.4V) 9 Amps 15 Amps 4.4 Amps
CERTIFICATION
High Beam ECE R112 ECE R112 ECE R112
ECE Reference 2×25
(2x 10 – With E-Mark Cap)
N/A
(17.5 – E-Mark Mode)
30

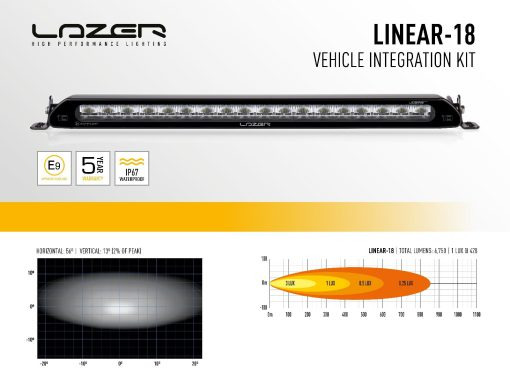

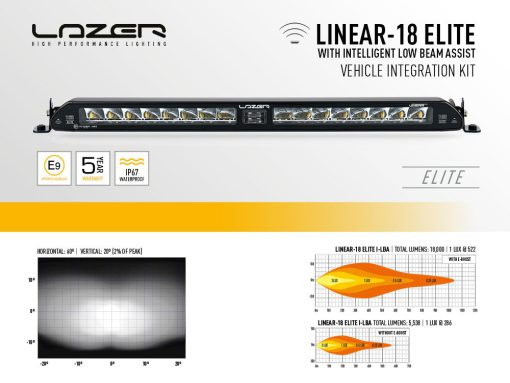

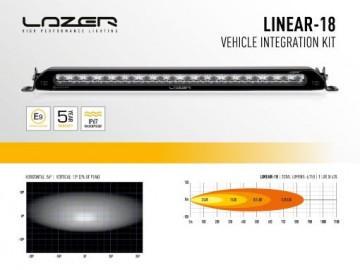

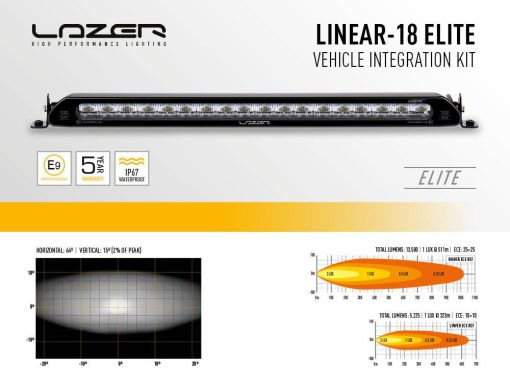

PHOTOMETRIC DATA
Horizontal Beam Angle 64° 60° 56°
1023m 1023m 1043m 855m
723m 723m 738m 605m
511m 511m 522m 428m
295m 295m 301m 247m

Lazer Lights – Land Rover Defender (2020+) Linear-18 Bumper Kit.
