Lazer Lights – Ford Ranger 2016+ Bumper Beam Kit

€ 549,95 (inclusief btw 21%)
Levertijd 4 tot 8 werkdagen
Productcode leverancier VIFK-RANGER
Bruto gewicht 1,10 Kg

Lazer Lights – Ford Ranger 2016+ Bumper Beam Kit


Lazer Lights – Ford Ranger 2016+ Bumper Beam Kit

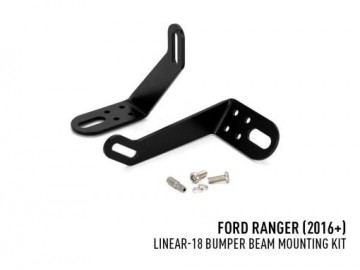

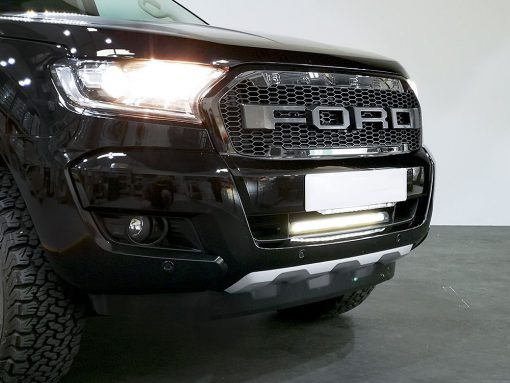

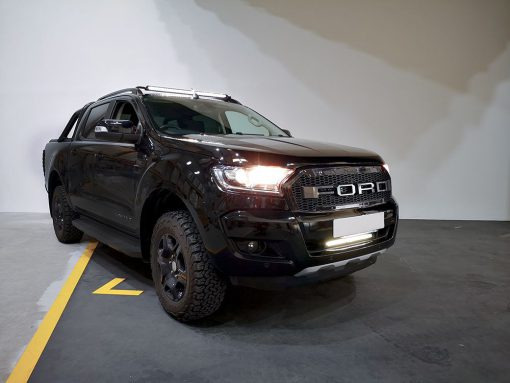

Effortlessly positioned into the lower front grille, secured to the vehicles bumper beam, the Lazer Lamps vehicle integration kit for the Ford Ranger (2016-Present), allows for flush mounting of our class-leading Linear-18 Standard, or Linear-18 Elite (also avaliable with Position Light) for an auxiliary LED driving light installation that impresses day and night. The slimline design and high-end styling of the Linear-18 blends seamlessly into the front-end of the vehicle for an understated integration, albeit one that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday road and off-road use.

E-mark certification allows for connecting into the vehicle’s electrical system so that the light activates with the vehicle’s standard high beam lights. Available with all necessary installation parts including wiring loom, and fixtures, the Ford Ranger lighting upgrade kit delivers incredible levels of illumination for when the sun goes down.

The mounting of the light is quick and simple, while the resulting setup is secure and robust, with anti-theft fasteners included. Like all lighting products from Lazer Lamps, the Linear-18’s are designed, engineered, and manufactured in the UK, backed up by our comprehensive 5 year warranty. With no compromises in component parts or production techniques, your installation will stay looking in great shape year-after-year.

Please note – not suitable for vehicles with ACC (Adaptive Cruise Control)


Technical Specifications

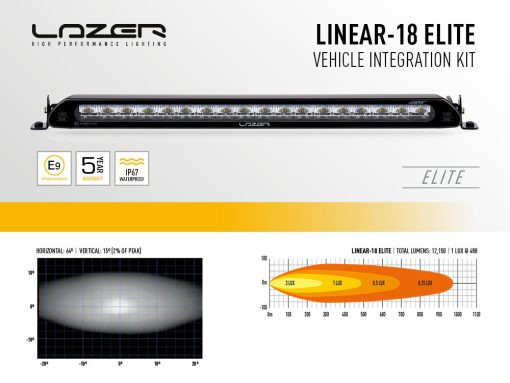

Based on setup: 1x Linear-18 Elite High Performance LED Lamps:
Voltage Range 10-32V
LED Life 50,000 hours
Weight 1090 gr
Total Luminous Flux 12150 Lm
Total Driver ‘FOV’ Flux † 8651 Lm
Colour Temperature 5000k
Number of High Output LEDs 36
Power Consumption 126 Watts
Current Draw (at 14.4V) 8.8 Amps
Start-Up Time * 100ms
High Beam ECE R112
ECE Reference 45
Width 532 mm
Depth 62 mm
Height 40 mm
Horizontal Beam Angle 42 deg

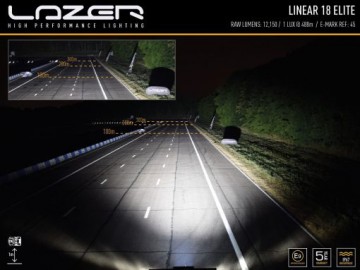

0.25 lx Line 975 metres
0.5 lx Line 690 metres
1 lx Line 488 metres
3 lx Line 282 metres
