Lazer Lights – Land Rover Defender (-2018) Roof Kit

€ 1.098,99 (inclusief btw 21%)
Levertijd 4 tot 8 werkdagen
Productcode leverancier 3001-Def-G2
Bruto gewicht 5,00 Kg

Lazer Lights – Land Rover Defender (-2018) Roof Kit


Lazer Lights – Land Rover Defender (-2018) Roof Kit

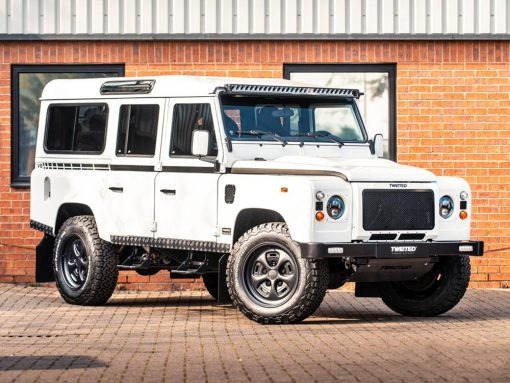

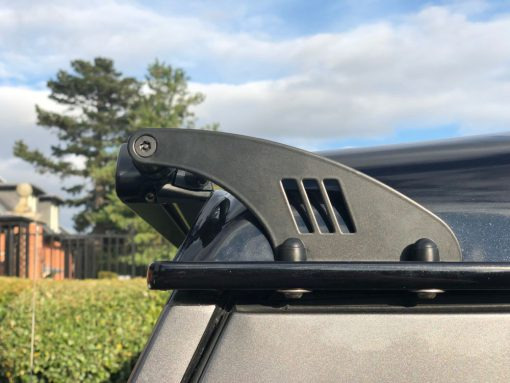

Specifically engineered for the Land Rover Defender (-2018), the Lazer Lamps Roof Mounting Kit, for pre-2019 vehicles, comprises stainless steel brackets that fix to the vehicle’s roof side gutter and are optimised for either our Linear-48 or Triple-R 28 off-road LED spotlights.

Manufactured from A2 stainless steel, and finished with a UV-stable, satin black powder coat, the brackets are fully corrosion resistant in line with automotive grade quality standards, as are the supplied countersunk anti-theft fasteners, which come in a variety of lengths from 20mm–80mm. To complete the mounting of different length light bars, cylindrical carbon spacers, of varying lengths, are provided to aid positioning.

The installation of the brackets to your vehicle is completed using M6 fasteners fixed within the gutter location either side of the Defender’s roof. Cable grommets are supplied to ensure a tidy, and sealed cable entry point, while a supplied VHB cleaning pad is provided for preparation of areas where additional sealant might be applied. Electrical butt connectors are provided to help assure the integrity of the cable reattachment once thread through the roof.

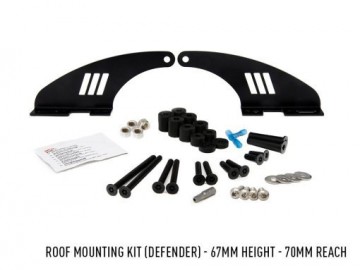

What’s included:
– 2x Stainless Steel Mounting Bracket (LH/RH)
– 1x Anti-theft Fastener Set (various sizes)
– 1x Spacer Set (various sizes)
– 4x M6 Anti-Theft Fasteners
– 2x Cable Grommet
– 1x VHB Cleaning Sachet
– 2x Heat-shrink Butt Splice

Complete one-stop solution for roof-mounting on Land Rover Defender (pre 2018)

Optimised for either Triple-R 28 or Linear-48 LED spotlights

Made from 3mm A2 stainless steel

UV-stable, satin black powder coat

Includes assortment of A2 stainless steel fixings with countersunk head

Carbon spacers facilitate positioning of different length LED light bars

M6 fasteners facilitate mounting brackets to underside of the roof rails

Manufactured in the UK


Technical Specifications

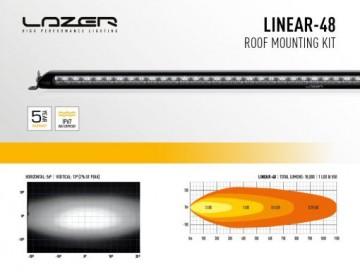

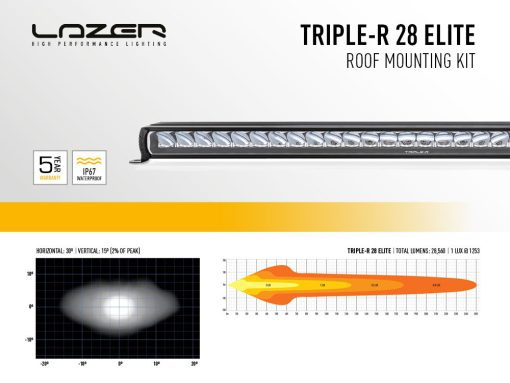

  Linear-48 Triple-R 28 Elite (Gen2)
Voltage Range 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 4 kg 4.7kg
Total Luminous Flux 18000 Lm 28560 Lm
Total Driver ‘FOV’ Flux † 12816 Lm 18821 Lm
Colour Temperature 5000k 5000k
Number of High Output LEDs 48 28
Power Consumption 168 Watts 315 Watts
Current Draw (at 14.4V) 11.7 Amps 21.9 Amps
Start-Up Time * 100ms 100ms
High Beam N/A N/A
ECE Reference N/A N/A
Horizontal Beam Angle 34 deg 42 deg
0.25 lx Line 1101 metres 2506 metres
0.5 lx Line 779 metres 1772 metres
1 lx Line 550 metres 1253 metres
3 lx Line 318 metres 724 metres
