Lazer Lights – Isuzu D-Max (2017+) Lower Grille Mounting Kit

€ 649,95 (inclusief btw 21%)
Levertijd 4 tot 8 werkdagen
Productcode leverancier VIFK-DMAX-01K
Bruto gewicht 2,00 Kg

Lazer Lights – Isuzu D-Max (2017+) Lower Grille Mounting Kit


Lazer Lights – Isuzu D-Max (2017+) Lower Grille Mounting Kit

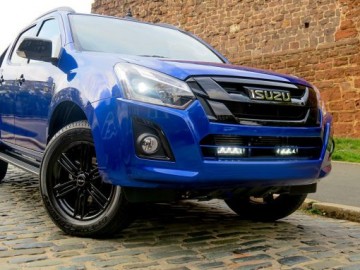

If looking for a discreet yet powerful auxiliary high beam driving light install for your D-Max (model year 2017+), then look no further than a pair of ST4 Evolution, or Triple-R 750 high-performance spotlights from Lazer Lamps. The lights are secured to the vehicles bumper beam bar, behind the lower grille, providing for a fully road legal installation that will leave you finding excuses to go out at night!

Optimised for the ST4 Evolution, or range of Triple-R 750 high performance spotlights, the lights mount in pairs directly on the bumper beam bar, for an installation that gets noticed when you need it most – at night. Vehicle wiring kits are also available allowing for connecting your lights either direct to your standard high beams, and/or operated via a separate switch on your dashboard.

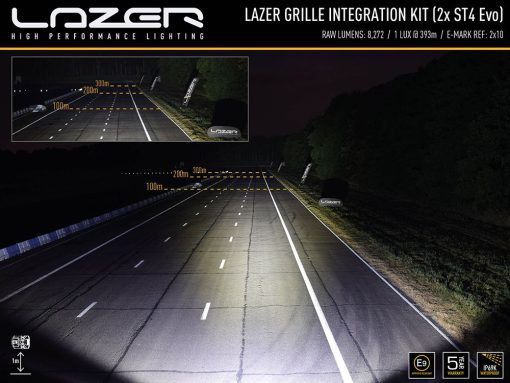

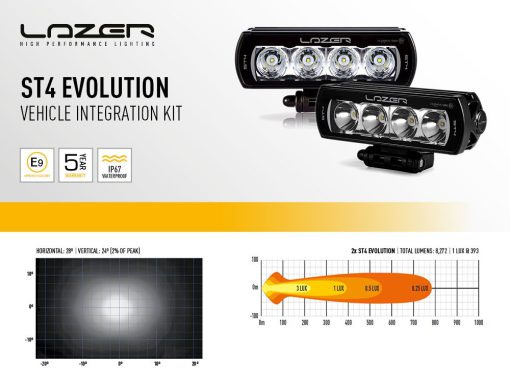

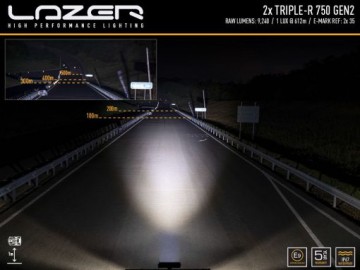

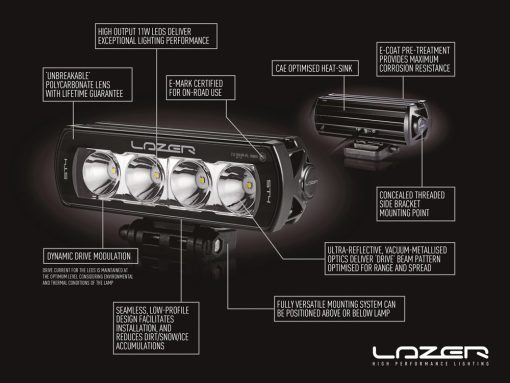

The ST4 Evolution option delivers good distance illumination (1 lux at 393m) but with an all-round spread of light that ensures excellent visibility both left/right and up/down. In this respect, the ST4 is particularly well suited for customers driving in rural or off-road locations. By contrast the Triple-R 750 (available in Standard or Elite grade) delivers a spot beam with 1 lux reaching 612m or 679m depending the lamp version selected. Both options are fully ECE approved for on-road use.

With no compromises in component parts or production techniques, as with all Lazer products, we have taken every step to maximise lighting performance, and build quality, to ensure your lighting installation remains in excellent condition for years to come.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.

Auxiliary spotlight installation for Isuzu D-Max (2017+)

Optimised mounting with pair of ST4 Evolution or Triple-R 750 spotlights

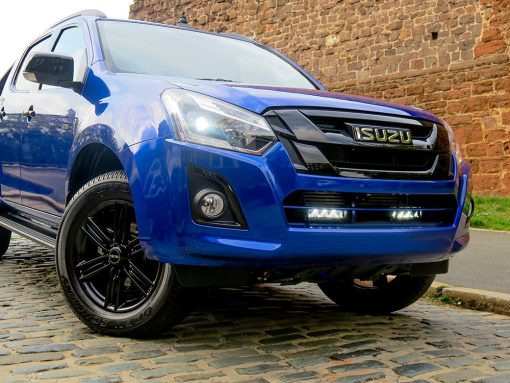

Secured to vehicle’s bumper beam bar behind lower grille

Vehicle wiring kits available

Fully road-legal

5-year warranty

Made in Britain

Wat wordt er geleverd:
– x1 Linear-24 Elite High Performance LED-spot

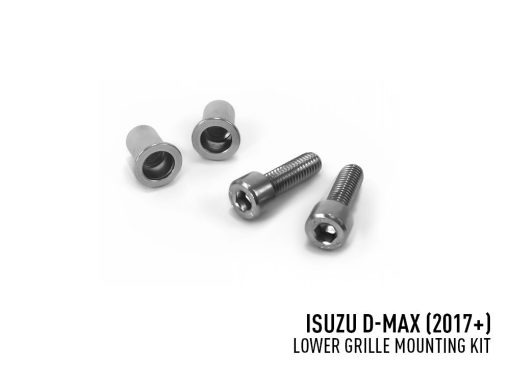

– x1 montagekit (bestaande uit 2 beugels en bevestigingen)
– x1 bedradingsset voor één lamp
– x1 installatie-instructies


Technical Specifications

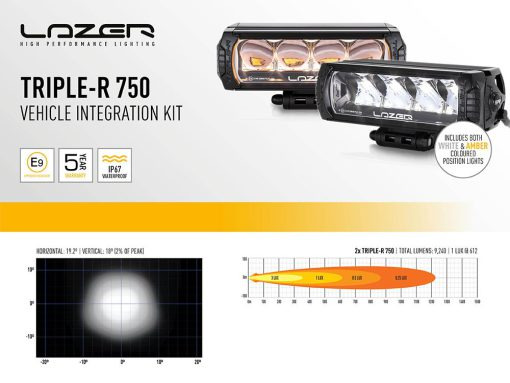

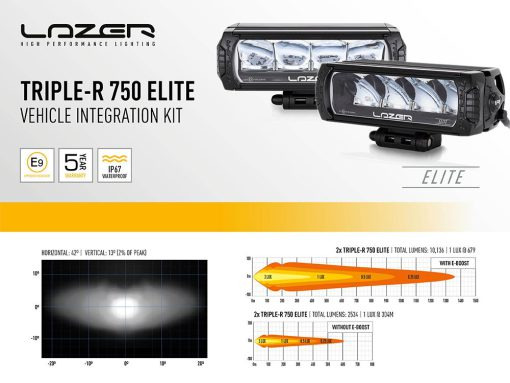

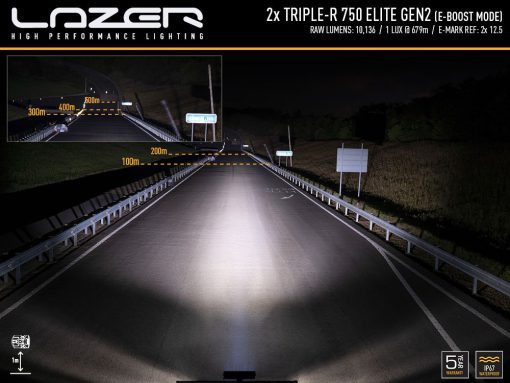

Triple-R 750 Elite
(E-Boost Mode)
Triple-R 750
2x ST4 Evolution
Voltage Range 10-32V 10-32V 10-32V
LED Life 50,000 hrs 50,000 hours 50,000 hours
Weight 2 kg 2 kg 2 kg
Total Luminous Flux 10136 Lm 9240 Lm 8272 Lm
Total Driver ‘FOV’ Flux † 6680 Lm 5572 Lm 4980 Lm
Colour Temperature 5000K 5000K 5000K
Number of High Output LEDs 2 x 4 2 x 4 2 x 4
Power Consumption 104 Watts 88 Watts 94 Watts
Current Draw (at 14.4V) 7.2 Amps 6.2 Amps 6.6 Amps
High Beam ECE R112 ECE R112 ECE R112
E-Mark Ref N/A
(12.5 x2 – E-Mark Mode)
35 x2 10 x2
Position Light (White only) N/A ECE R7 N/A
Horizontal Beam Angle 42° 19° 40°
0.25 lx Line 1358m 1225m 786m
0.5 lx Line 960m 866m 555m
1 lx Line 679m 612m 393m
3 lx Line 392m 354m 227m
