FRONT RUNNER – MERCEDES BENZ GELANDEWAGEN DRAWER REAR DECK

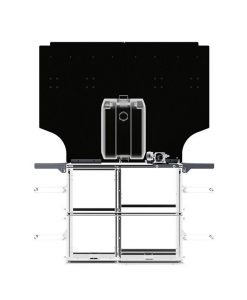

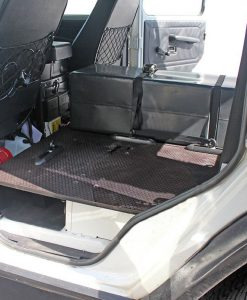

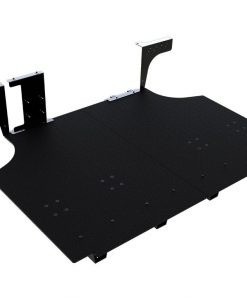

This carpeted 12mm laminated plywood rear deck set works in a Mercedes Benz Gelandewagen with one or both of the rear seats removed. Designed to create a lower platform behind the Mercedes Benz Gelandewagen 5-Door Drawer Kit – by Front Runner (SSDR003) to create more storage space across a level surface for water tanks, fridges, boxes, etc.

Info:

• These 2 deck components can be used with one or both rear seats are removed.
• Create a clean finished look and provide a level packing or mounting surface for fridges, slides, water tanks and other gear.
• Decks are covered with a durable, UV resistant nylon pile carpet detailed to compliment the drawer.
• Custom fitted to replace the rear seat or seats while following the contours of the vehicle for a clean installation.
• Decks mount to the existing bolt holes of the rear seats when seats have been removed.
• 4 Additional holes need to be drilled in the foot well to secure the front mounting brackets to the floor.
• The back of the decks fasten to a channel in the SUV Asymmetric Drawers / Medium and sit +/- 280mm lower than the drawer deck.

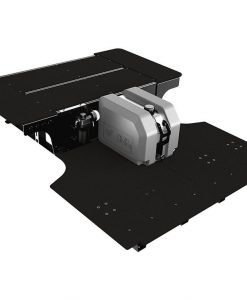

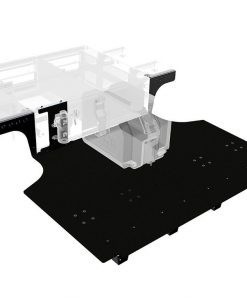

• A Water Tank With Mounting System / 45l can be fitted over the 2 decks and secured to the drawer system with the supplied bracket.

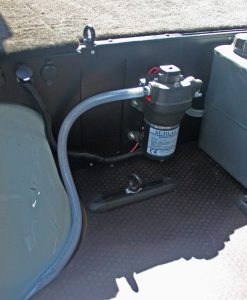

• A bracket is also included to fit a Surgeflow Compact Water System Pump / 12.5l/3.3USG Per Min to the rear of the drawer system which gets coupled to the water tank for easy water usage.
• All installation hardware and fitting instructions are included.

Specs:

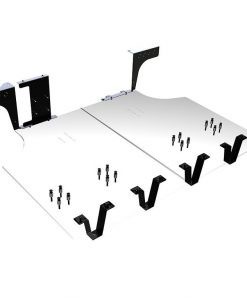

Consists of:

• 2 x Side Decks (1 x Left Hand side & 1 x Right Hand side)
• 2 x Drawer Rear Face Plates (1 x Left Hand side & 1 x Right Hand side)
• 4 x Floor Mount Brackets
• 1 x Drawer Mount Water Pump Bracket
• 1 x 45l Water Tank Mounting Brackets
• Installation Hardware
• Fitting Instructions

Materials used:

• Black powder coating mild steel
• Laminated plywood
• Nylon UV resistant carpet

Product Dimensions:

• 1070mm (42.1″) L x 1410mm (55.5″) W x 431mm (17″) H

Weight:

• 10.2kg (22lbs)
