The first complete Toyota Full Hydraulic Steering Kit. This kit comes with everything needed to build a fully hydraulic steering system. All mounting brackets are included and have been designed for most Toyota applications and ease of installation.

Fits with toyota applications but can fit with other applications with some modifications.

This kit takes all the guess work out of setting up a hydraulic steering system. The pump has an all steel housing and puts out 4.5 GPM of flow and 1650 PSI of pressure. All high pressure hoses are steel braided with crimped-on ends. Our kit is the most user friendly kit on the market, we thought of everything so you don''t have to.

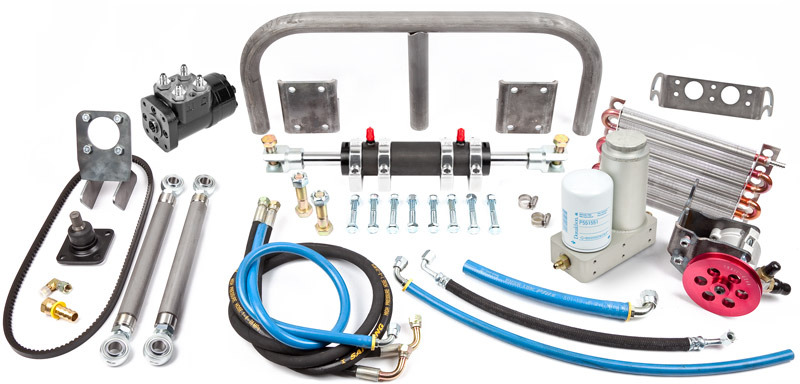

Kit Includes:

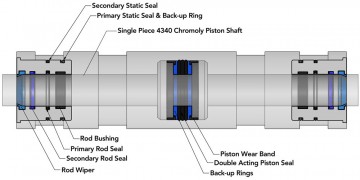

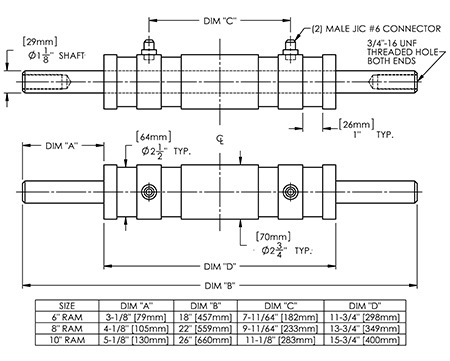

• 6, 8", or 10"" Double Ended Ram and Clevis Kit
• Orbital (100ml, 125ml, or 160ml)
• Full Hydraulic Steering Pump with Pulley
• Tie Rod Kit
• Double Ended Ram Mounting Kit
• Steering Column
• Orbital Mounting Kit
• Reservoir with Filter
• Reservoir Bracket
• Cooler
• Power steering belt
• Complete hose kit
• All necessary hardware

CHOOSE THE KIT IN THE MENU'

Note: Never use ATF fluid, or a semi-synthetic blend. This will void the warranty. Royal Purple fully synthetic power steering fluid recommended. Ok to use standard power steering fluid or a full synthetic.

Full Hydro Steering set
