ARB – BASE Rack Sport Lid Mount Kit

The most important aspects that ARB engineers took into account when developing a kit that would allow mounting a BASE RACK on ARB SportLid were:

• Ease of assembly/disassembly (fit for all SportLid models)
• Possibility of installing the original rollbar from each manufacturer.
• Keep the BASE RACK as close as possible to the SportLid cover.

Characteristics:

• Specific “leaf” style mounts for SportLid ARB.

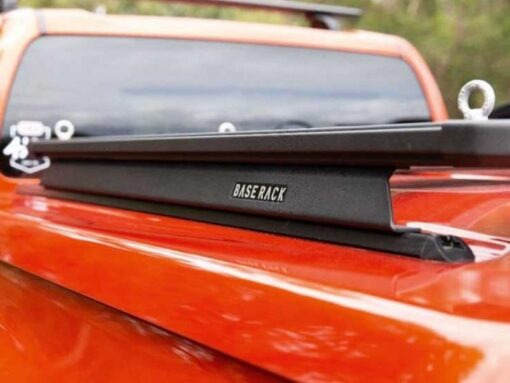

• Distance between the BASE RACK and the Sportlid cover is 25 mm.
• The minimum height added to SportLid is 60 mm.
• The maximum load per BASE Rack beam is 25 kg. Loads must be evenly distributed and properly secured.

Ability:

• SportLid ARB: 75kg
• Rack Base ARB-1770070 + supports ARB-17900120: 20Kg

Useful load:

• SportLid ARB + ​​Base Rack ARB-1770070 + supports ARB-17900120: 55Kg
