Lazer Lights – Land Rover Defender (2020+) Grille Kit

€ 579,95 (inclusief btw 21%)
Levertijd 4 tot 8 werkdagen
Specificaties
Productcode leverancier GK-DEF-G2
Bruto gewicht 2,00 Kg
Omschrijving

Lazer Lights – Land Rover Defender (2020+) Grille Kit



Lazer Lights – Land Rover Defender (2020+) Grille Kit

For an OE quality, auxiliary LED driving light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

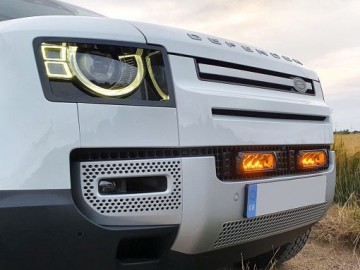

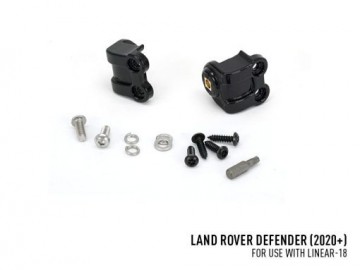

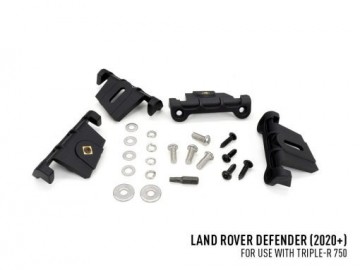

The Land Rover Defender kit, designed for MY20 vehicles onwards, includes either a pair of Triple-R 750 (Standard Or Elite) or a single Linear-18 (Standard, Elite and Elite with I-LBA) High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard lower grille on the vehicle, with added strength and security provided by the supplied self-tapping, anti-theft screws. Made from a composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.

Lazer Grille Integration Kits are optimised for use with Triple-R 750 or Linear-18 High Performance LED driving lights.

Where the vehicle has the LED Matrix headlight system as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.

Bespoke vehicle integration kit for Lazer LED Spotlight installation

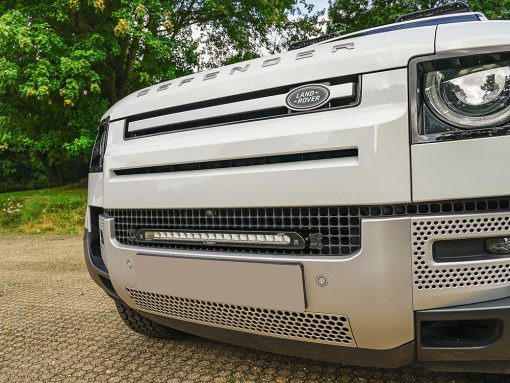

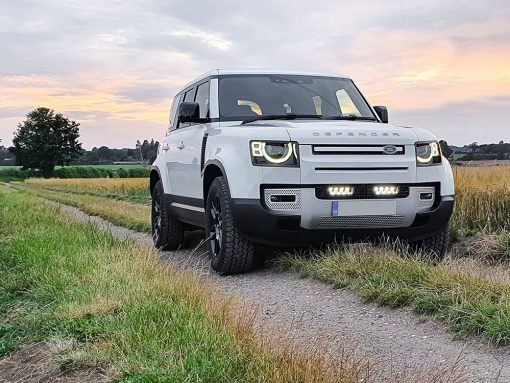

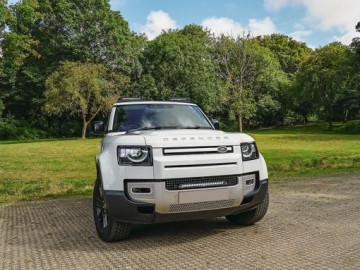

Custom fit for Land Rover Defender (2020+)

Designed for use with Triple-R 750 or Linear-18 High Performance LED Spotlights

Added option for white or amber position/side light function (Standard model only)

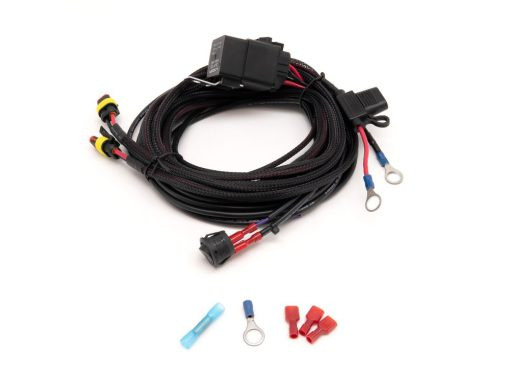

Kit also includes bespoke mounting brackets and two-lamp wiring kit

Brackets made from high strength, UV -stable, composite material

Fully road-legal

5-year warranty

Made in Britain

Specifications:

Technical Specifications
  2x

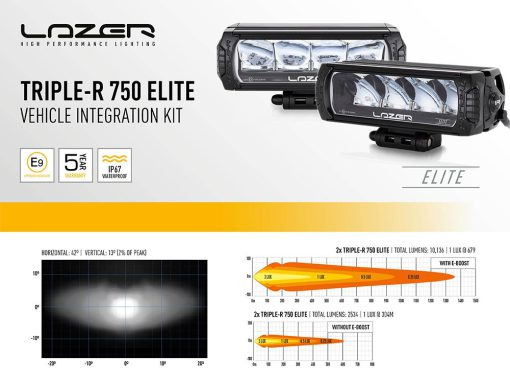

Triple-R 750 Elite
(E-Boost Mode)
2x

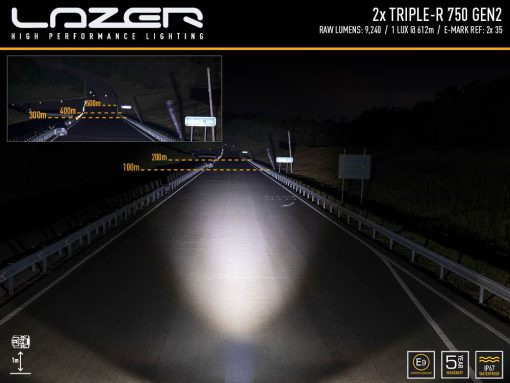

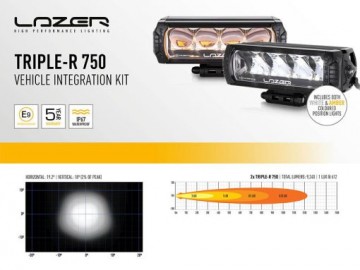

Triple-R 750

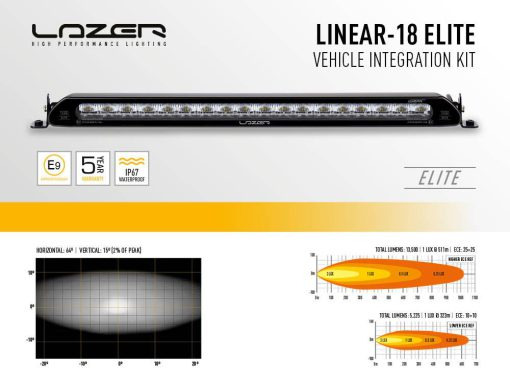

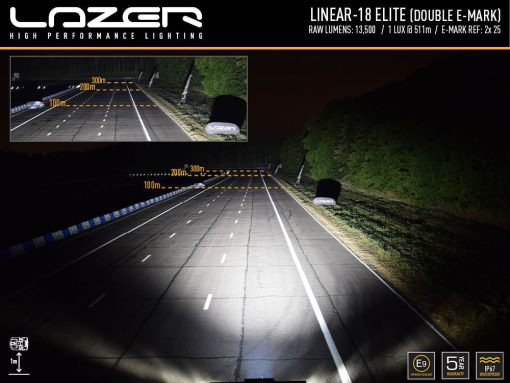

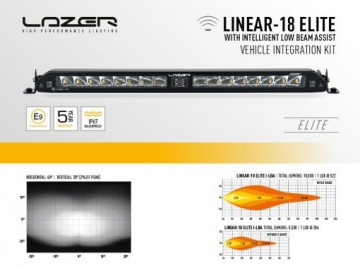

1x Linear-18 Elite
(Double
E-Mark)

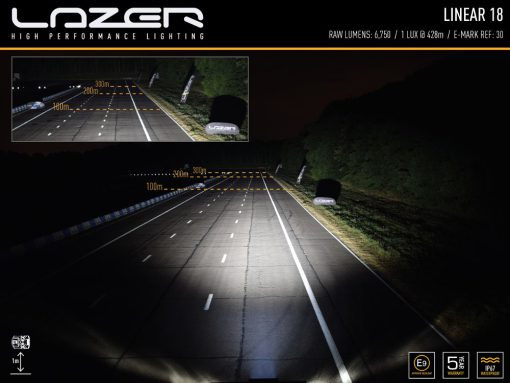

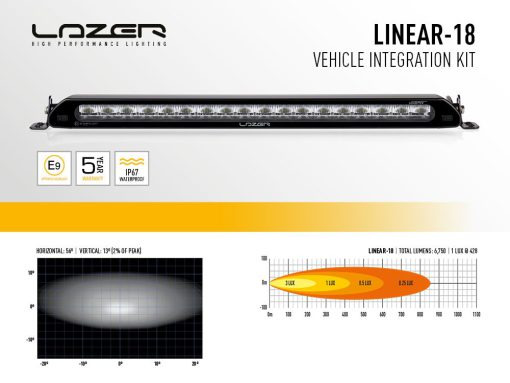

1x Linear-18
Voltage Range (DC) 10-32V 10-32V 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs
Weight 2 kg 2 kg 1kg 1kg
HIGH BEAM FUNCTION
Total Luminous Flux 10136 Lm 9240 Lm 13500 Lm 6750 Lm
Total Driver ‘FOV’ Flux † 6680 Lm 5572 Lm 9612 Lm 4806 Lm
Colour Temperature 5000K 5000K 5000K 5000K
Number of High Output LEDs 2 x 4 2 x 4 36 18
Power Consumption 104 Watts 88 Watts 130 Watts 63 Watts
Current Draw (at 14.4V) 7.2 Amps 6.2 Amps 9 Amps 4.4 Amps
CERTIFICATION
High Beam ECE R112 ECE R112 ECE R112 ECE R112
ECE Reference N/A
(12.5 x2 – E-Mark Mode)
35 x2 25 x2
(2×10 – With E-Mark Cap)
30
Position Light (White only) N/A ECE R7 N/A N/A

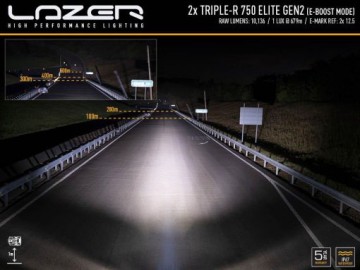

PHOTOMETRIC DATA
Horizontal Beam Angle 42° 19° 64° 56°
0.25 lx Line 1358m 1225m 1023m 855m
0.5 lx Line 960m 866m 723m 605m
1 lx Line 679m 612m 511m 428m

3 lx Line

Lazer Lights – Land Rover Defender (2020+) Grille Kit.
