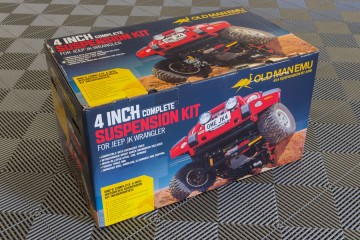

OME Complete Suspension Kit 4" voor Jeep Wrangler JK (2007+)

OME Complete Suspension Kit 4" voor Jeep Wrangler JK (2007+)

Artikel OME OMEJK4

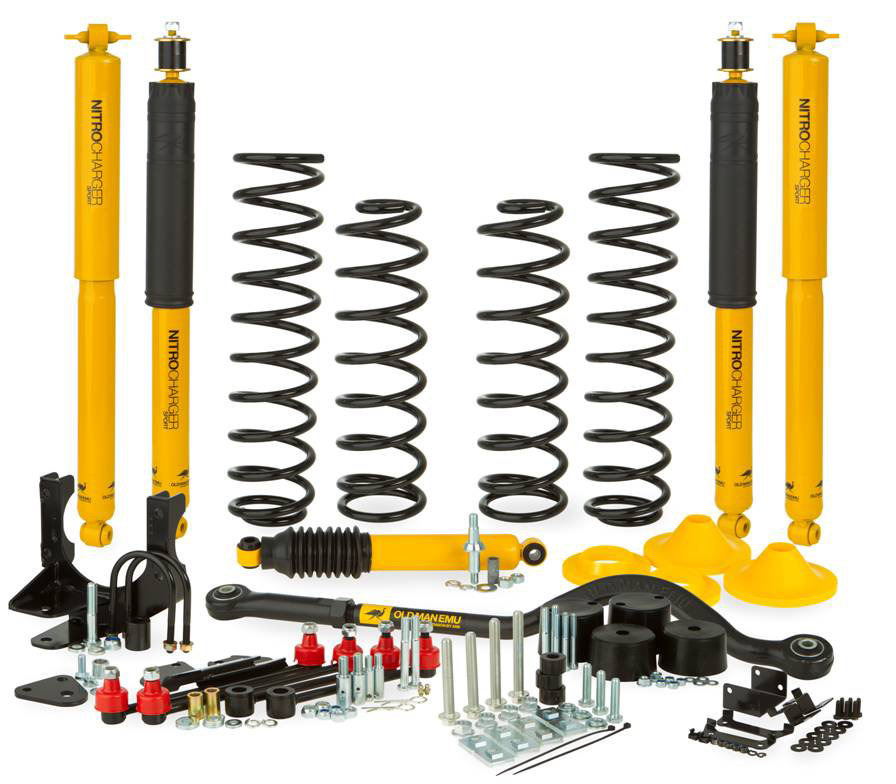

Inhoud kit:

• Springs (Trim packers have been included to assist in fine tuning ride height that may be caused by various accessory fitments.)
• Shock Absorbers (A new front Nitrocharger sport shock (60066M) was developed which allows 4” of down travel at the 4 inch lift.)
• Panhard rod (To center and fine tune the location of the front axle, Old Man Emu has developed an adjustable forged track bar as a replacement to the original. )
• Panhard rod relocation kit (A rear Track Bar relocation bracket was developed to address the positioning of the rear track bar. This relocation bracket not only centers the axle but also raises the rear roll center to provide positive rear stability)
• Bump stop spacer kit (A bump stop spacer kit is used to ensure a larger diameter tire is kept off the body work and optimizes shock extended and compressed lengths to allow maximum compression and rebound travel.)
• Caster correction & driveline kit (To achieve a 4 to 5 degree caster correction it only requires 7mm longer arms or a bracket adjustment. For this small shift Old Man Emu has developed an offset washer)
• Sway Bar Disconnect Kit (New longer front and rear sway bar links have been developed to correct sway bar alignment due to increased lift)
• Steering Damping (The steering damper has been specifically tuned for the Jeep JK to address front end wobbles initiated by anything from worn ball joints to out of balance large diameter tires.)
• Steering damper relocation bracket (For all LHD Jeep Wrangler JK models, a steering stabilizer fit kit has been developed to relocate the stabilizer above the tie rod. By repositioning the stabilizer, it is less vulnerable to damage as it’s no longer the lowest part of the front suspension.)
• Brake Line Relocation Kit (Brake line relocation brackets have been developed to reroute factory brake lines to work with this kits’ extended shock lengths.)

Opgelet: Voor modellen vanaf 2012 met 3,6-liter motor zijn aanpassingen aan de uitlaat of aandrijfas vereist om contact te voorkomen.
